| | Main Service | Flight
Time | MTOM | Take-off | Aircraft Specifics |
|---|
| |

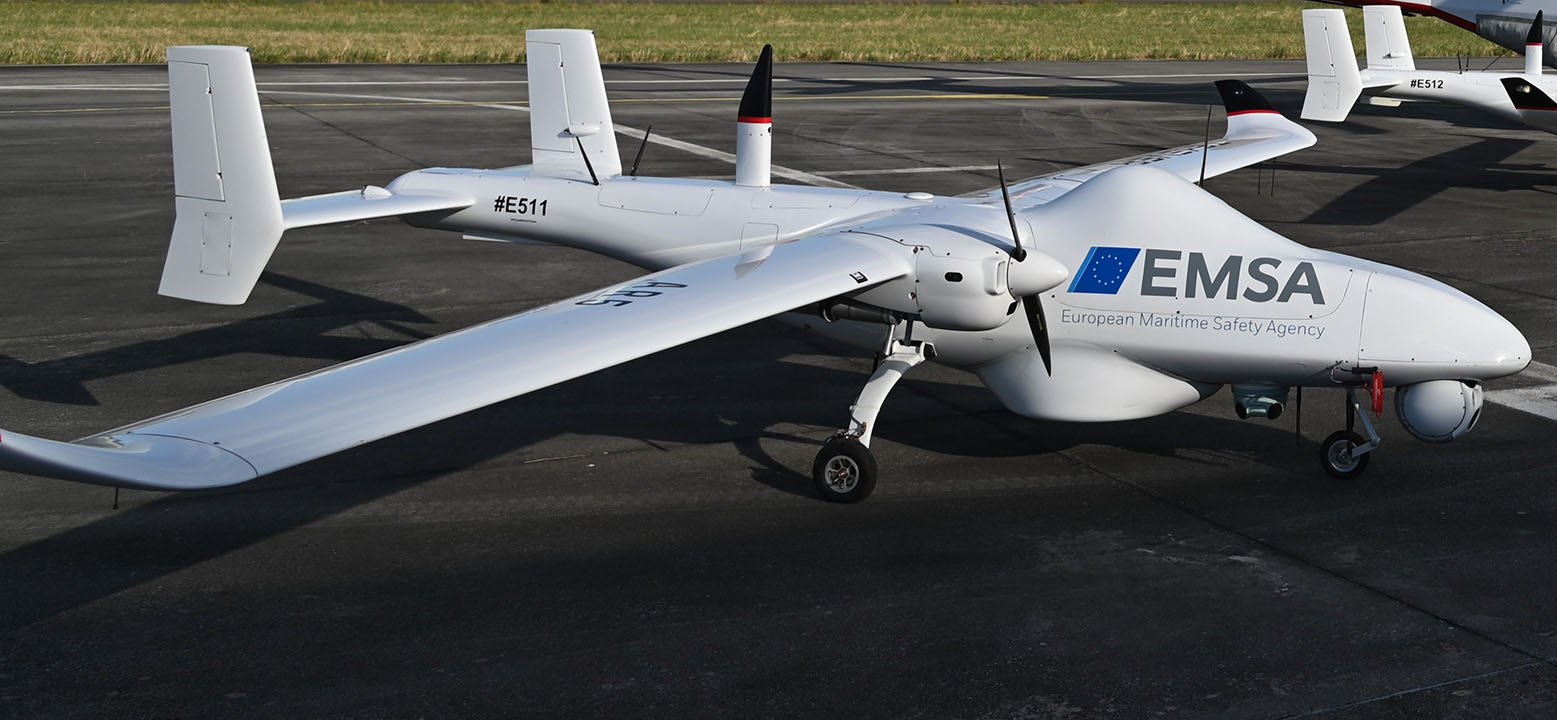

Multipurpose maritime surveillance
|
up to 9h |
180 kg |
Runaway |
- Can fly Beyond Radio Line of Sight (using Satellite communications)
- EO/IR cameras including laser illuminator, AIS sensor, EPIRB, Satcom terminal, Maritime Radar, radar emitter detector, Mobile phone detector
- Can be equipped to drop an inflatable life raft for 8 persons.
|
| |

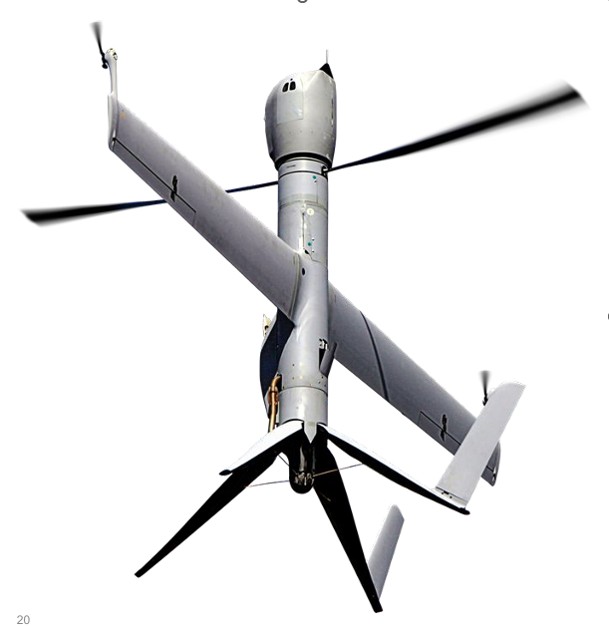

Multipurpose maritime surveillance
|
up to 10h
(with radar)
up to 15h
(without radar) |
36.3 kg |
Take-off with catapult.
Landing with recovery net in circle area with 20m diameter. |
- Can fly for up to 800km along the coast with a relay of antennas.
- EO/IR cameras including laser illuminator, maritime radar, EPIRB, AIS receiver.
|
|

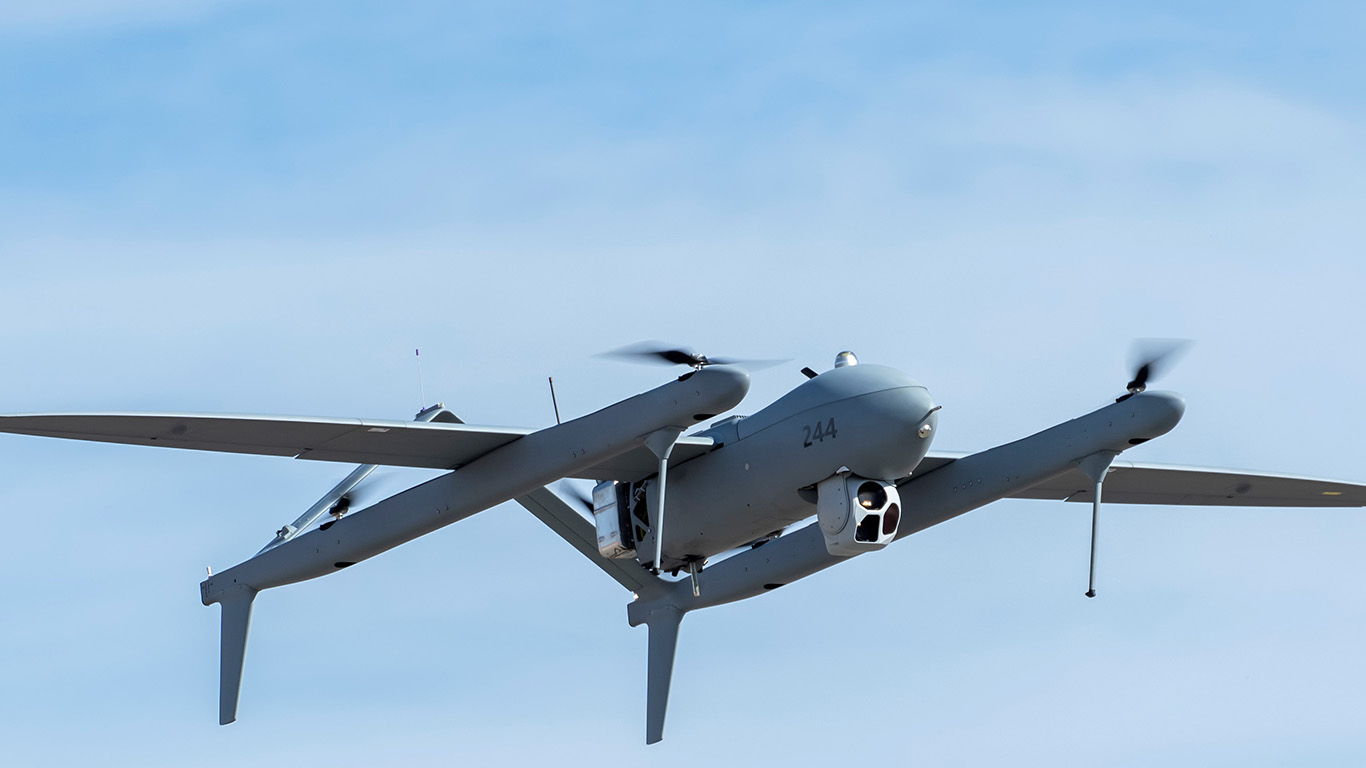

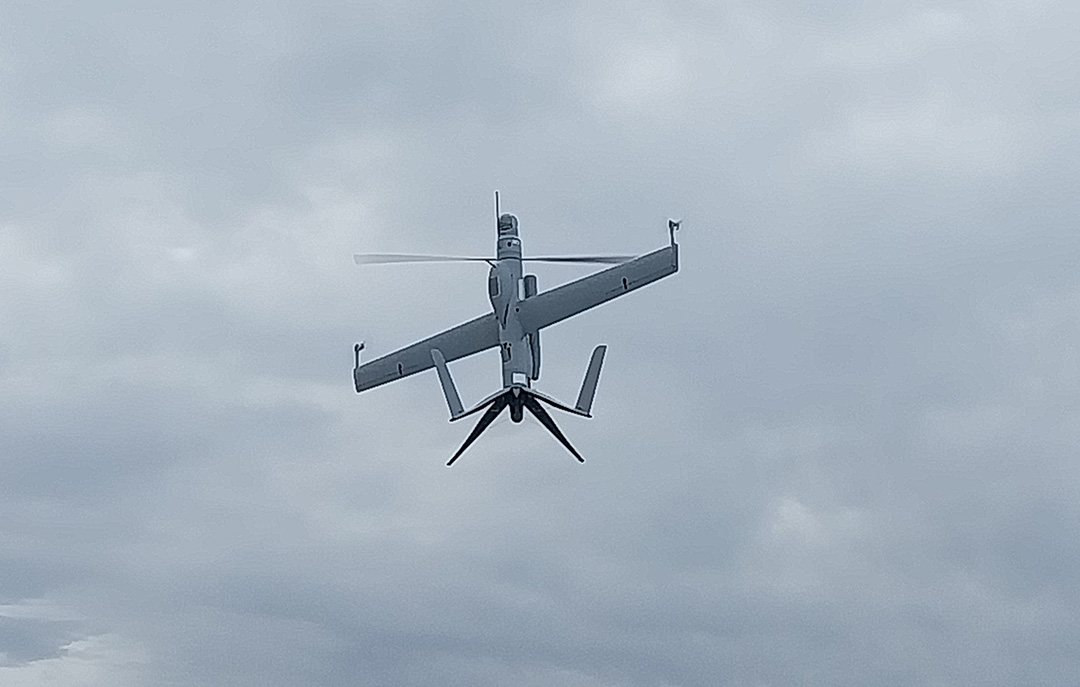

Multipurpose maritime surveillance
|
up to 9h |
50 kg |
Vertical Take-off & Landing area
<10mx10m |
- Can fly up to 140km
- Vertical take-off/land from vessel or land
- Payloads: EO/IR with automatic scanning mode, AIS receiver, EPIRB
|
|

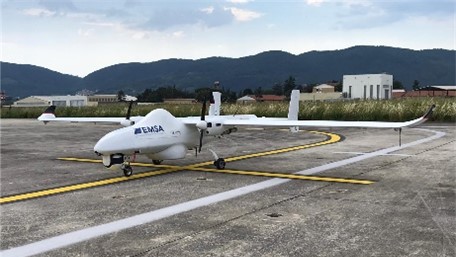

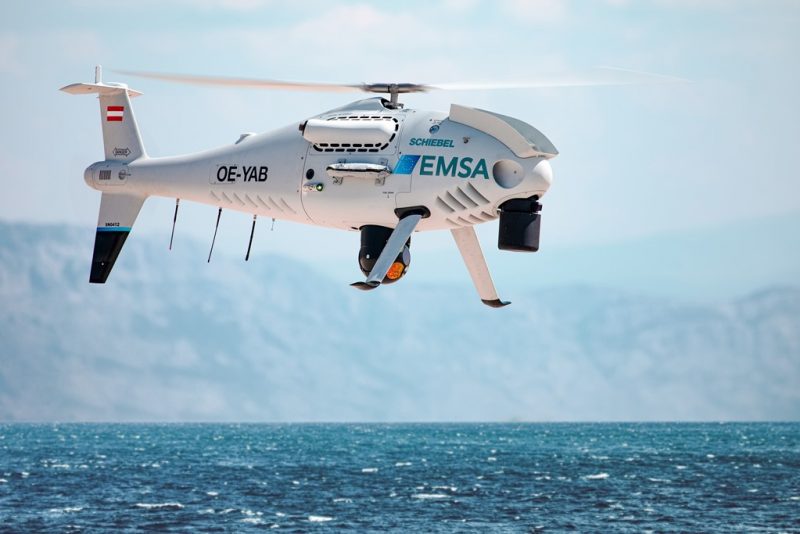

Emissions monitoring/
Multipurpose maritime Surveillance |
up to 6h |
> 150 kg |
Landing area
<10mx10m |
- Can take-off/land from Vessels or land
- Emissions monitoring sensor (SOx/NOx sniffer)
- EO/IR cameras, laser range finder and illuminator, AIS receiver, EPIRB.
|
| |

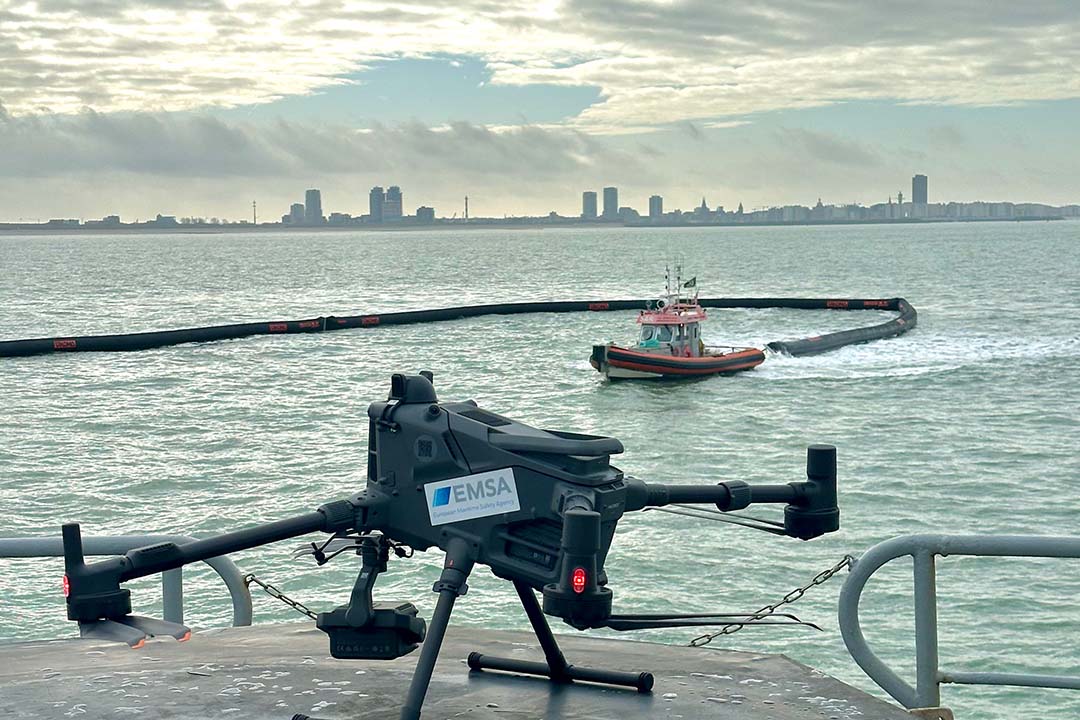

Support to pollution response
(from vessels or in coastal areas) / multipurpose maritime surveillance
|
> 35 min |
<3 kg |
Landing area
<2mx2m (vessels) |
- Can take-off/land from Vessels or land
- small logistical footprint
- fast operational readiness
- EO/IR, capability to transport and drop small objects (samples, USB ..)
|
|

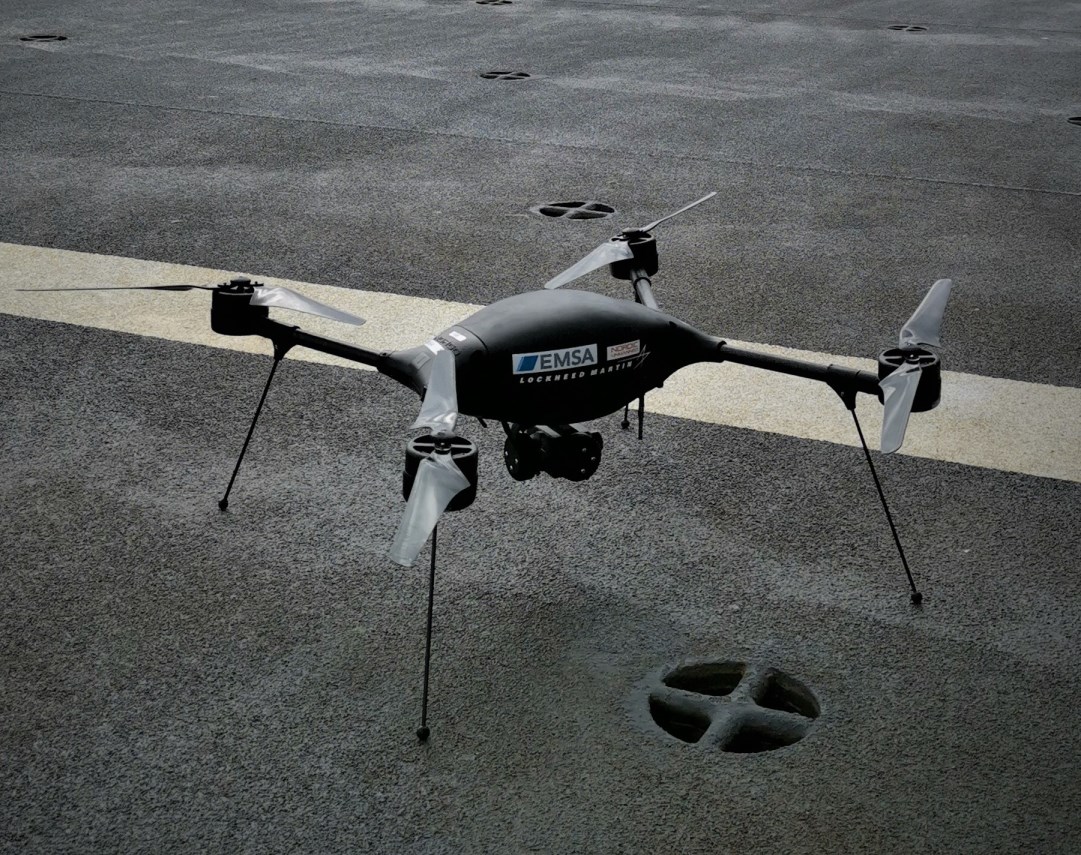

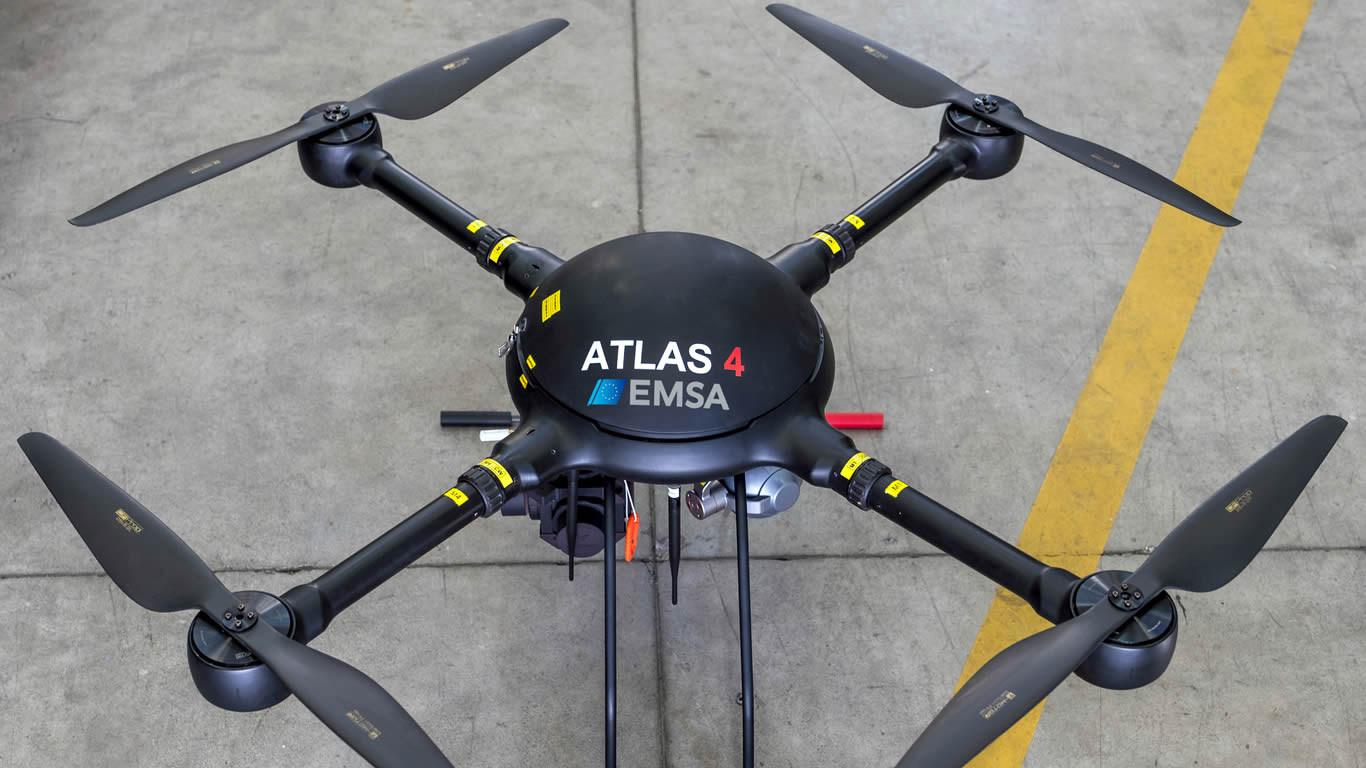

Emission Monitoring
(from vessels or in coastal areas) / multipurpose maritime surveillance |
50 min |
13 Kg |
Landing area 5mx5m (min 2x2m) |
- Can take-off/land from Vessels or land
- small logistical footprint
- Emissions monitoring sensor (SOx/NOx sniffer)
- EO/IR cameras, AIS receiver
|
